Trunking Recorder Call Uploads

Call Uploading will upload recorded/imported calls to Broadcastify Calls, another Trunking Recorder website, or to a Rdio Scanner instance.

For more information on Broadcastify Calls and to request access go to Broadcastify Calls

For more information on Rdio Scanner go to rdio-scanner GitHub

To enable Call Uploads to Broadcastify Calls - Trunked System

Broadcastify Calls must be recorded in MP3 MONO with a sample rate of 22050Hz and bit rate of 32kb/s.
Enabling "Broadcastify Call" uploading will override your existing Unitrunker recording settings.
  1. Submit a Broadcastify Calls System Application selecting Trunking Recorder (Trunked System) as your ingest application.
  2. Once approved you will be sent an API key and Node ID.
  3. From the Trunking Recorder Configure menu select the "Call Uploading" tab.
  4. On the "Client" tab click the "Add Call Upload" button.
  5. Enter a friendly "Description" value to help you manage the feed.
  6. The type setting should be set to "Broadcastify Trunked Calls".
  7. The "Talkgroups to Upload" option allows you to choose which talkgroups to upload to Broadcastify.
  8. Enter the API key supplied by Broadcastify in the "Upload Key" field.
  9. Enter the Node ID supplied by Broadcastify in the "Upload ID" field. (The Node ID is not the System ID of the Trunked system you are monitoring)
  10. Server URL should remain blank and does not apply to Broadcastify Calls.
  11. Select the "Site" you will be uploading to Broadcastify. If you have multiple sites you wish to upload you will need to apply for multiple feeds.
  12. Call delay allows call uploads to be delayed for the specified number of minutes, but this generally will cause skew issues and the calls will be rejected.
  13. Click the "Save" button, Trunking Recorder will start uploading new calls once Call Capture is started.

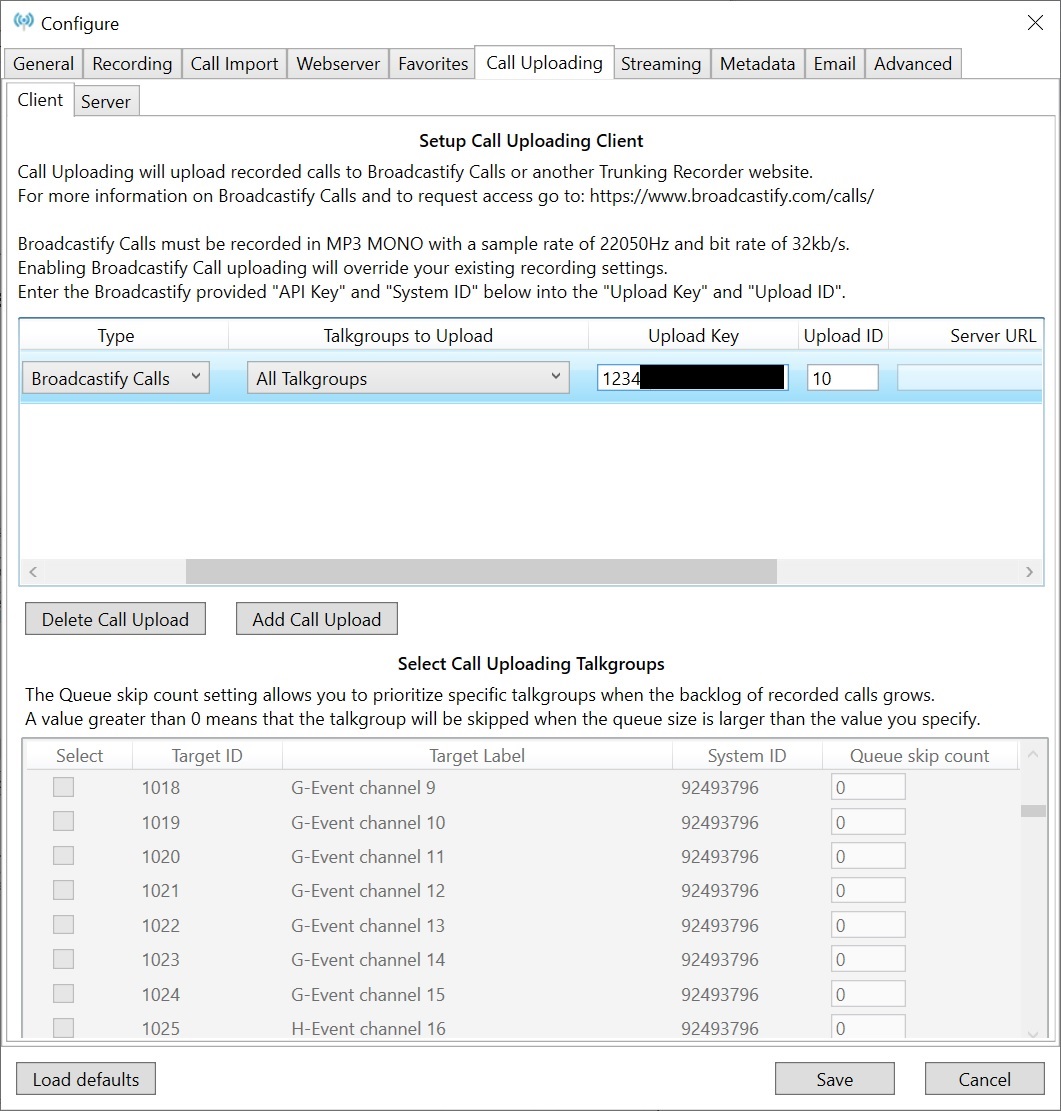

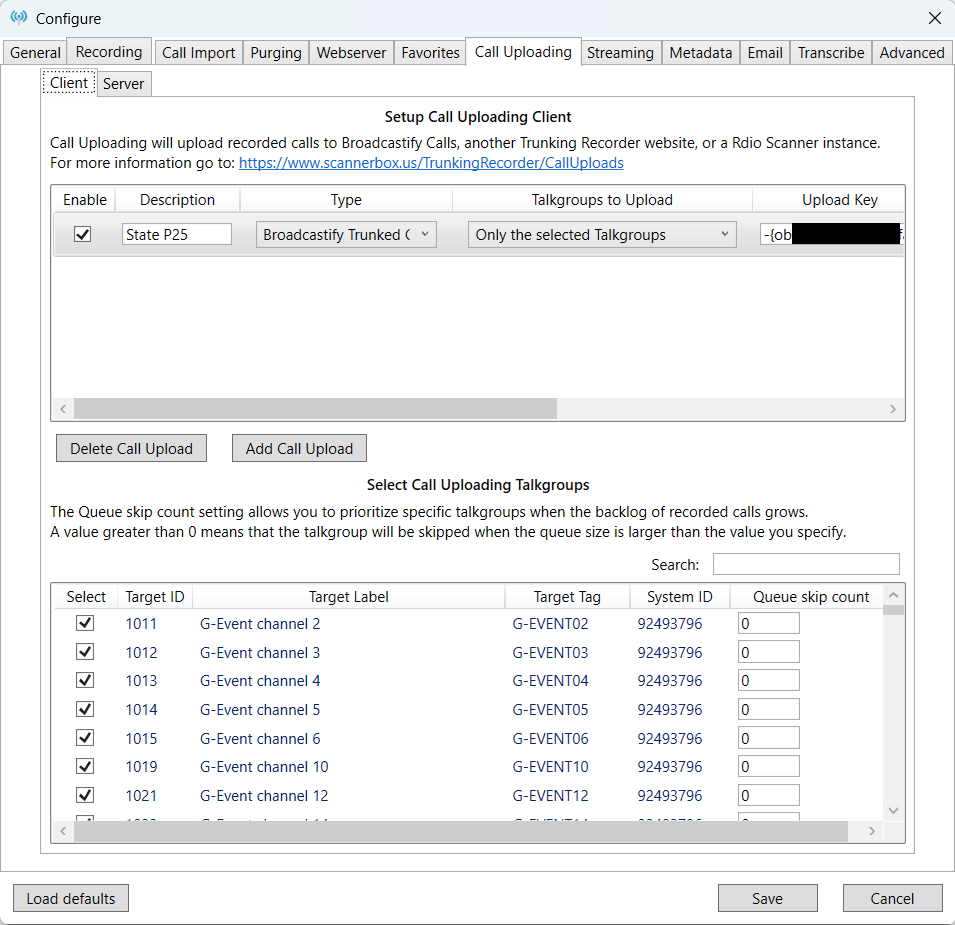

    14. Trunking Recorder Call Upload Broadcastify

To enable Call Uploads to Broadcastify Calls - Conventional System

Broadcastify Calls must be recorded in MP3 MONO with a sample rate of 22050Hz and bit rate of 32kb/s.
Enabling "Broadcastify Call" uploading will override your existing Unitrunker recording settings.
  1. Submit a Broadcastify Calls System Application selecting Trunking Recorder (Conventional System) as your ingest application.
  2. Enter all the conventional frequencies imported into Trunking Recorder that you would like to upload to Broadcastify, they must have a matching entry in RadioReference.com database.
  3. Once approved you will be sent an API key and Node ID.
  4. On the "Client" tab click the "Add Call Upload" button.
  5. Enter a friendly "Description" value to help you manage the feed.
  6. The type setting should be set to "Broadcastify Conventional Calls".
  7. The "Talkgroups to Upload" option will select "Only the selected Talkgroups".
  8. Enter the API key supplied by Broadcastify in the "Upload Key" field.
  9. Enter the Node ID supplied by Broadcastify in the "Upload ID" field.
  10. Server URL should remain blank and does not apply to Broadcastify Calls.
  11. Site does not apply to Broadcastify Calls Conventional.
  12. Call delay allows call uploads to be delayed for the specified number of minutes, but this generally will cause skew issues and the calls will be rejected.
  13. In the "Call Uploading Talkgroups" section select the talkgroups that you submitted in your Broadcastify feed.
  14. Enter the "Upload Slot" number for each conventional frequency, upload slots start at 1 and will normally be in same order as you listed in your Broadcastify feed application. If you go to the Broadcastify Calls Manage Calls Systems page and select the "Node Frequencies" Link the "Slot" number is listed to the left of your Frequencies.

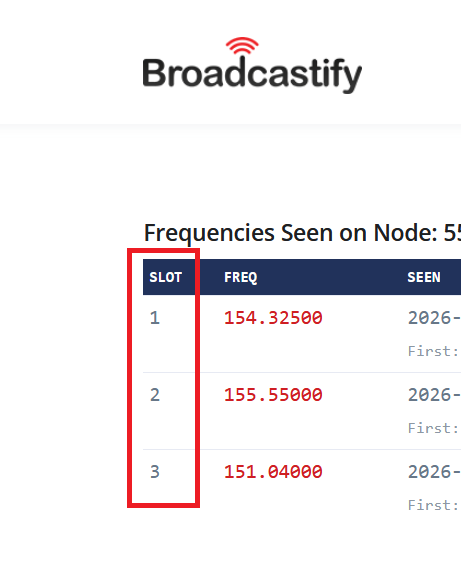

    15. Trunking Recorder Call Upload Broadcastify Slots
  15. Click the "Save" button, Trunking Recorder will start uploading new calls once Call Capture is started.

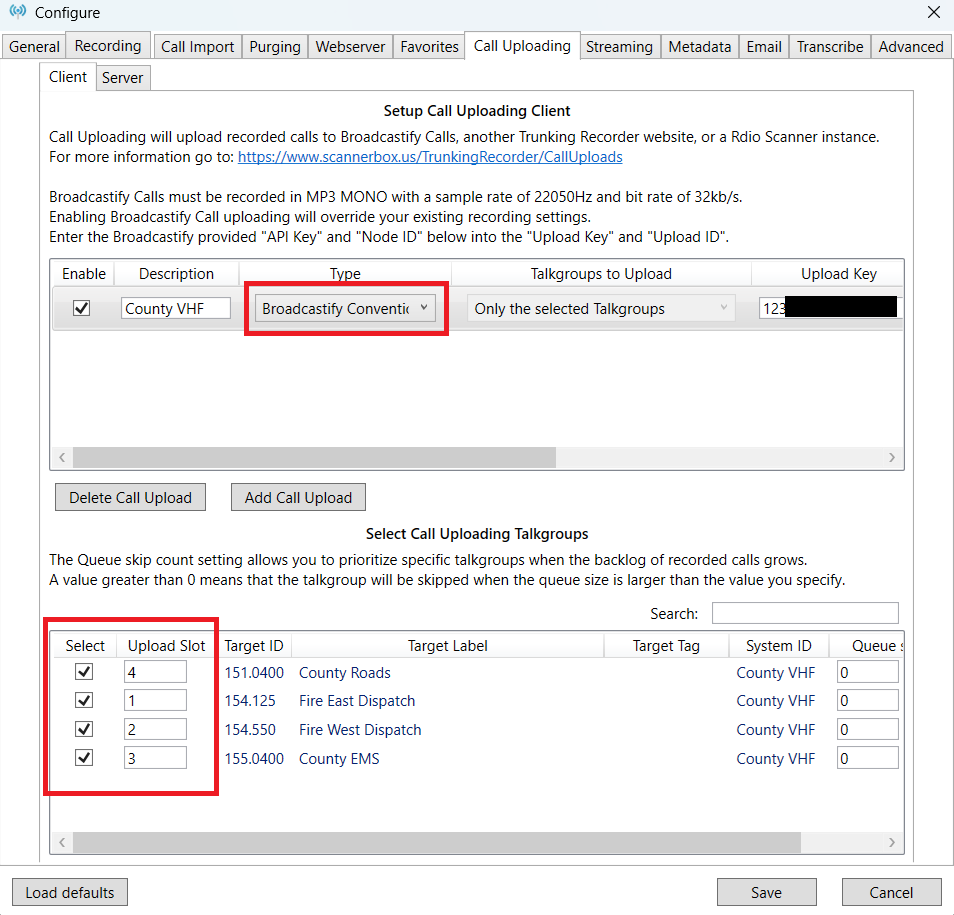

    16. Trunking Recorder Call Upload Broadcastify Conventional

To enable Call Uploads to Rdio Scanner

  1. Setup and configure Rdio Scanner.
  2. Create a System and API key in the Rdio Scanner Admin web interface.
  3. From the Trunking Recorder Configure menu select the "Call Uploading" tab.
  4. On the "Client" tab click the "Add Call Upload" button.
  5. Enter a friendly "Description" value to help you manage the feed.
  6. The type setting should be set to "Rdio Scanner".
  7. The "Talkgroups to Upload" option allows you to choose which Talkgroups to upload to Rdio Scanner.
  8. Enter the API key created by Rdio Scanner in the "Upload Key" field.
  9. Enter the System ID setup in Rdio Scanner in the "Upload ID" field. (The system ID may not be the System ID of the Trunked system you are monitoring)
  10. Enter the full Server URL (including port) for the Rdio Scanner server which calls will be uploaded too. (Example: http://192.168.1.10:3000)
  11. Select the "Site" you will be uploading to Rdio Scanner. If you have multiple sites under the same System, you can choose the "All Calls on System..." option or create multiple separate systems in Rdio Scanner.
  12. Call delay allows call uploads to be delayed for the specified number of minutes.
  13. Click the "Save" button, Trunking Recorder will start uploading new calls once Call Capture is started.

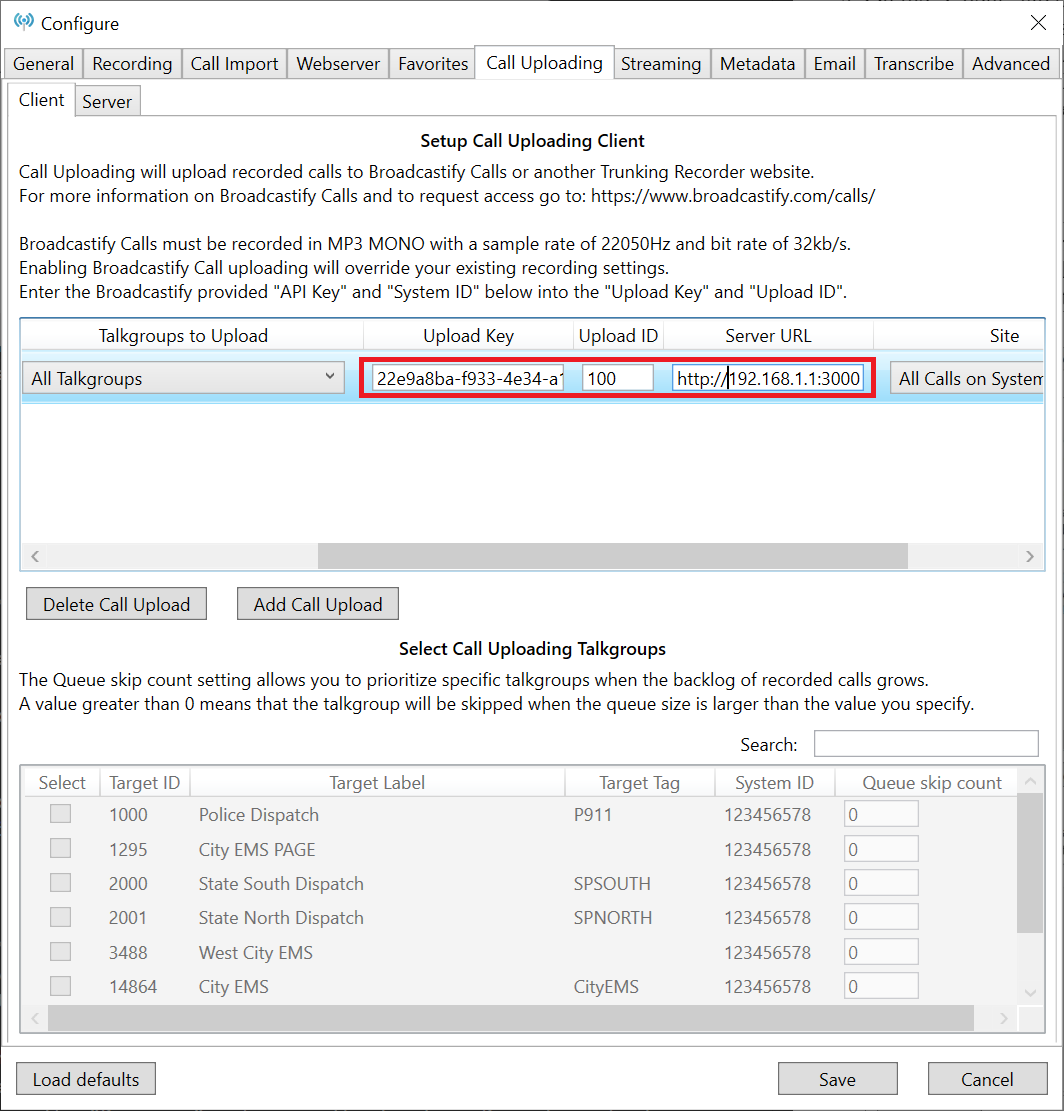

    14. Trunking Recorder Call Upload Rdio Scanner

To enable Call Uploads to Trunking Recorder

Server Setup

  1. From the Configure menu select the "Call Uploading" tab.
  2. Select the "Server" tab.
  3. Select the "Accept Call Uploads from remote machines" checkbox.
  4. Enter a API Call Upload security key. This key should be at least 10 characters long and will be required by all Trunking Recorder clients that will upload calls to this server.
  5. The "Reject duplicate Calls" option will check each new call being uploaded to see if it matches one of the last 100 previously recorded or uploaded calls. If a match is found it will be rejected and not uploaded. Note: Duplicate call detection uses a margin of error system to allow for slight variations of Call Times and Call Length so it may allow/block some unexpected calls.
  6. The "Reject duplicate calls recorded on different sites" option will treat calls recorded from multiple sites as a duplicate. This option is useful if uploading multiple sites that can have the same call broadcast on both sites.
  7. The "Don't overwrite stored Talkgroup, Radio User, Site, or System Labels" option will cause Trunking Recorder to keep its currently stored labels and ignore any changes in the uploaded data. This is useful if you don't keep all uploading systems in sync with label settings.
  8. Click the "Save" button, Trunking Recorder will start accepting uploaded calls from other Trunking Recorder machines.

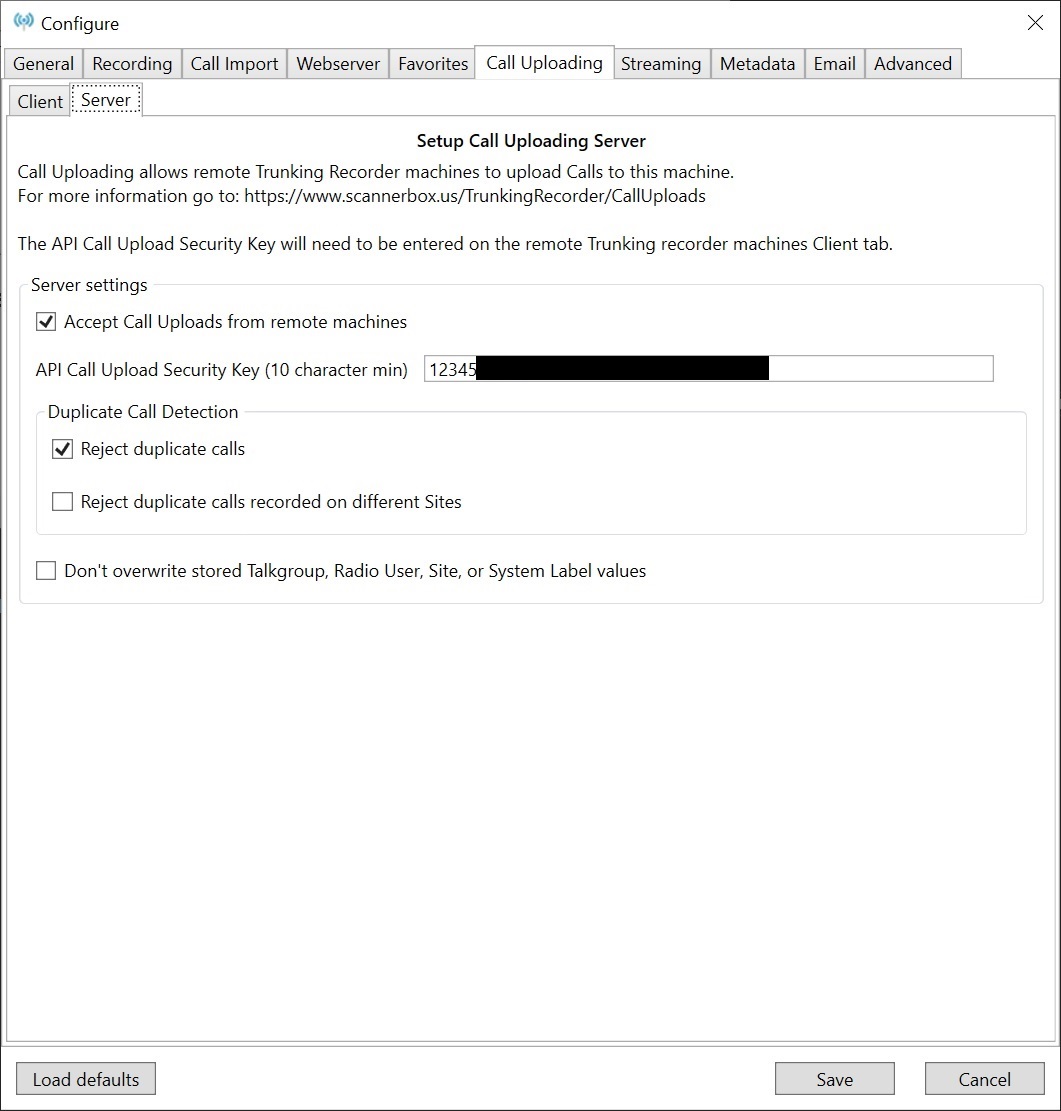

    9. Trunking Recorder Call Upload Trunking recorder Server

Client Setup

  1. From the Configure menu select the "Call Uploading" tab.
  2. On the "Client" tab click the "Add Call Upload" button.
  3. Enter a friendly "Description" value to help you manage the feed.
  4. Set the "Type" to "Trunking Recorder".
  5. The "Talkgroups to Upload" option allows you to choose which Talkgroups to upload to the Trunking Recorder server.
  6. Enter the API Call Upload key set by the Trunking Recorder server in the "Upload Key" field.
  7. Enter a unique "Upload ID" value, this will be displayed in the "Receiver" column on the Trunking Recorder website.
  8. Enter the full Server URL (including port if you are not using the default 80/443) for the Trunking Recorder server which calls will be uploaded too. (Example: http://192.168.1.10)
  9. Select the "Site" you will be uploading to Trunking Recorder. If you have multiple sites you wish to upload you will need to create multiple feeds.
  10. Call delay allows call uploads to be delayed for the specified number of minutes.
  11. Click the "Save" button, Trunking Recorder will start uploading new calls once Call Capture is started.

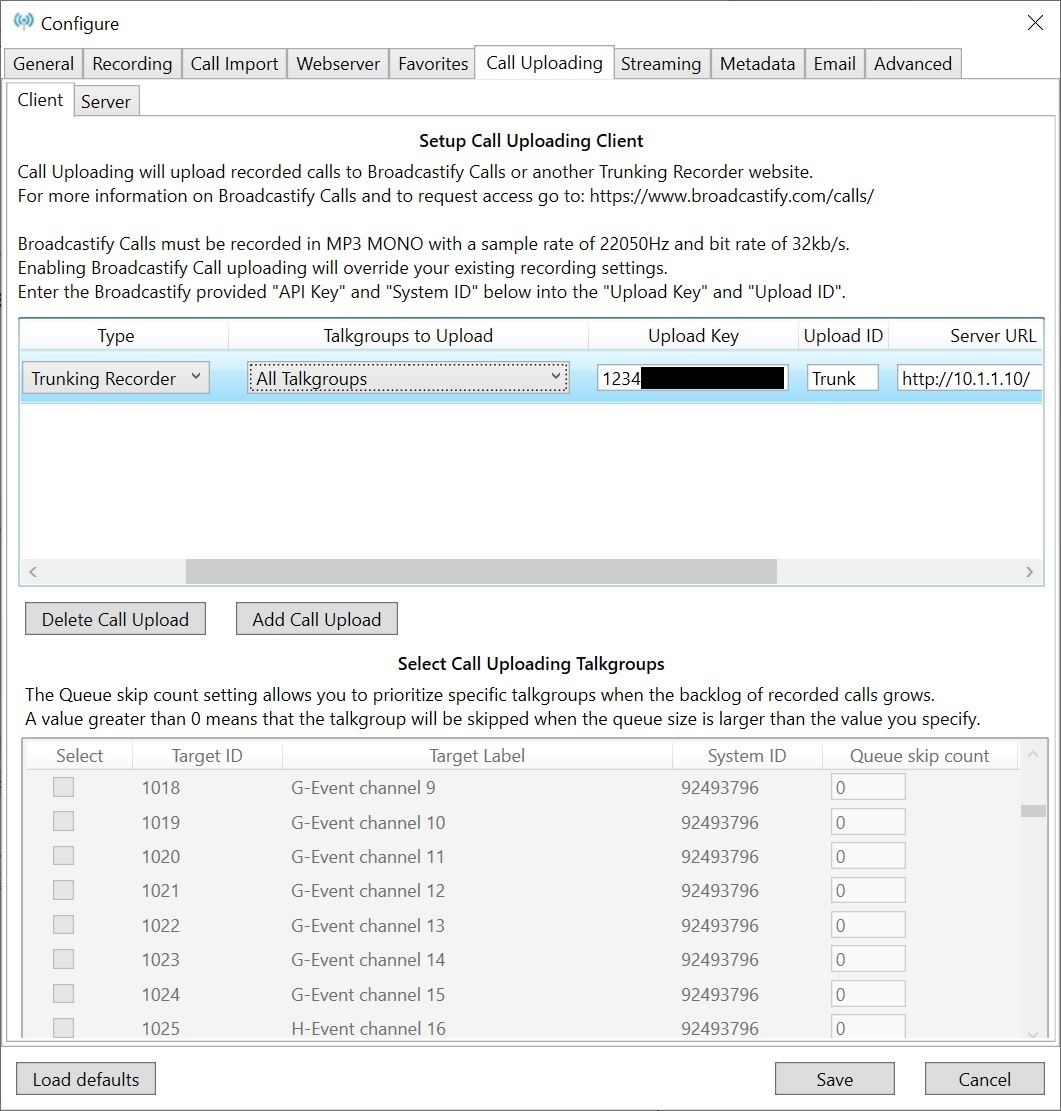

    12. Trunking Recorder Call Upload Trunking recorder
